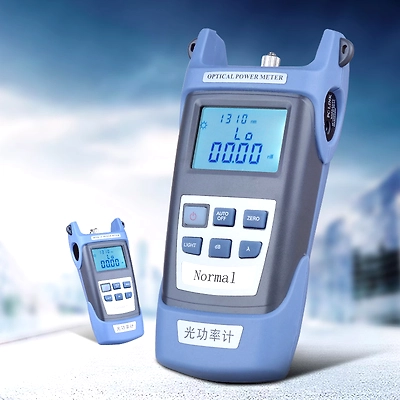

FTTH Fiber Optic Optical Power Meter Cable Tester Networks FC/SC Connectors -50~+25db

Wavelength(nm): 850,980,1300,1310,1490,1550

Detector: InGaAs

Measurement Range (dBm): -50~+25

Uncertainty: ±0.2(5%)

Calibrated Wavelength(nm): 850,980,1300,1310,1490,1550

Resolution(dB): Linear indication: 0.1%

Loharithmic indication: 0.01dBm

Optical Connector: FC/ Universal 2.5mm adaptor

Operating Temperature: -10 ~ +60C Storage Temperature: -25 ~ +70C

Relative Humidity: 0 to 95% (non-condensing)

Dimension(mm): 190×100×48 Weight: 300g

Resolution(dB): Linear indication: 0.1% Loharithmic indication: 0.01dBm

Optical Connector: FC/ Universal 2.5mm adaptor

Power Supply: Alkaline Battery(3 AA 1.5V batteries)

Battery Operating Time: 240 h with 1.5V Battery(3)

Operating Temperature: -10 ~ +60C

Storage Temperature: -25 ~ +70C

Relative Humidity: 0 to 95% (non-condensing)

Dimension(mm): 190×100×48

Weight: 300g
